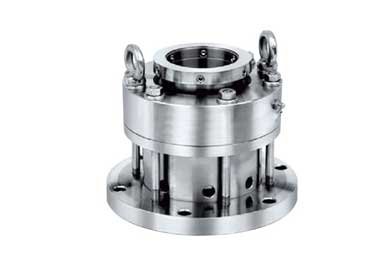

SINGLE AGITATOR MECHANICAL SEALS

Type RT-81/81B

  • Balance Pusher Seals.
  • Dry Run Seals are excellent in High Speed Seals for Operation in Vacuum Conditions.
  • Without Bearing OR with Integral Bearing.
  • Multiple Spring externally Mounted Seal with ‘O’ Ring as Secondary Sealing member.
  • Various Elastomers can be offered for various media application

Description

Single Agitator Mechanical Seals are Liquid lubricated agitator or reactor single seals that requires external liquid for lubrication. This is suitable for standardizations. Available with or without bearing. Integrated bearing is available as an option for additional shaft stability. Even it can run on high pressure. There is jacketing provision for cooling purpose. Pressurize and non-pressurized buffer liquid can be applied. Overall length of agitator is small which can be set in less space.

We also manufacture and supply Double Agitator Seals, Single Dry Agitator and Glass Lined Reactor Mechanical Seals as being top most mechanical seal manufacturers in Mumbai as well as known as one of the most precise mechanical seal manufacturing companies in India.

FAQ

  • It seals the rotating agitator shaft to prevent leakage from the vessel.
  • Commonly used in mixers, agitators, reactors and process vessels.
  • Suitable for applications where reliable shaft sealing is required.
  • Check shaft diameter, operating pressure, temperature and agitator RPM.
  • Also consider the process media and equipment mounting dimensions.
  • Providing the existing seal details or equipment drawing helps identify the correct seal.
  • Yes, but the seal faces, elastomers and metal parts must be selected according to the chemical being handled.
  • Material compatibility is important to prevent seal damage and leakage.
  • Share the process media and operating conditions for proper selection.
  • Clean and inspect the shaft and seal housing before installation.
  • Install the seal according to the specified shaft dimensions and setting length.
  • Ensure proper shaft alignment and avoid damaging the sealing faces.
  • Check for leakage after installation before starting full operation.
  • Yes, replacement seals can be supplied based on the existing seal or agitator specifications.
  • Share the seal model, shaft size, dimensions, photo or equipment drawing.
  • The replacement can be selected according to the application, media, pressure, temperature and RPM.

Shaft Dia : 25mm to 150mm

Pressure : Full Vacuum to 30 bar

Temperature : -30°C to 260°C

Speed : 400 RPM

Seal Ring Faces : Carbon and SiC

Seat Faces : SiC and TC

Elastomer : Viton, TTV, FEP and FFKM

MOC : SS 316 – CHANGE OF MOC ON REQUEST
